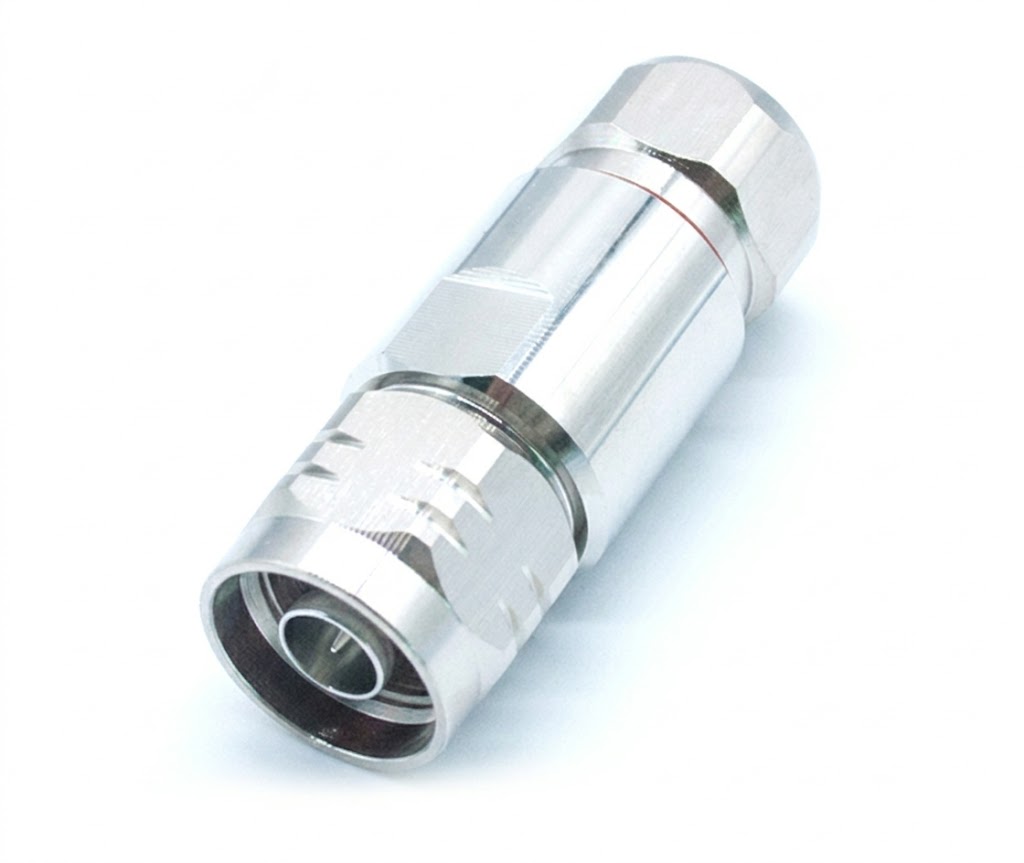

N Male Coaxial Crimp Connector for 1/2" Superflexible Cable

N Male Coaxial Crimp Connector for 1/2″ Superflexible Cable

High-Fidelity Connectivity for Demanding RF Networks

When routing cables through tight spaces in complex In-Building Antenna Systems (IBS) and public safety infrastructure, superflexible cables are essential. To match that flexibility without sacrificing signal integrity, Hefei BRI Electronic & Technology Co., Ltd. has engineered the NM-1/2″S.

This premium n male coaxial crimp connector is precision-manufactured specifically for 1/2″ superflexible RF cables. Built to stringent ISO 9001:2015 standards, this coax n type connector delivers the low-loss, low-PIM performance that modern Distributed Antenna Systems (DAS) require to maintain seamless, high-bandwidth cellular coverage.

Category:

Key Engineering Advantages

  • Optimized for Superflex: The specialized straight male design allows for secure, reliable termination on 1/2″ superflexible corrugated cables, ideal for tight routing in IBS deployments.

  • Ultra-Low PIM Performance: With a PIM3 rating of ≤-155dBc (2*43dBm), this connector virtually eliminates passive intermodulation, ensuring pristine audio and data transmission for critical public safety and telecom networks.

  • Extreme Weatherproofing: Engineered for both indoor and outdoor harsh environments, the IP68 sealing class guarantees complete protection against dust and water (submersible up to 1 meter for 24 hours).

  • Premium Trimetal & Silver Plating: The brass body and nut feature advanced trimetal plating, while the inner contacts are silver-plated. This combination drastically reduces insertion loss (≤0.10dB) and offers superior corrosion resistance over a long lifespan.

Technical Specifications

Electrical Specifications

ParameterSpecification
Characteristics Impedance50 Ohm
Frequency RangeDC ~ 11 GHz
Insulation Resistance≥ 5000 MΩ
Dielectric Withstanding Voltage2500V rms
Operating Voltage1500V rms
Center Contact Resistance≤ 1.0 mΩ
Outer Contact Resistance≤ 0.25 mΩ
Insertion Loss (@DC-2.7 GHz)≤ 0.10 dB
VSWR (@0.8-1.0 GHz)≤ 1.08
VSWR (@1.7-2.7 GHz)≤ 1.10
PIM3 (2*43dBm)≤ -155 dBc

Material and Plating

ComponentMaterial / Plating
Inner Conductor PinBrass / Silver Plating
Inner Conductor SocketTin Bronze / Silver Plating
InsulatorPTFE / TPX
Body & Outer ConductorBrass / Trimetal Plating
GasketSilicon Rubber
NutBrass / Trimetal Plating

Environmental & Mechanical Specifications

ParameterSpecification
Durability (matings)≥ 500 cycles
Temperature Range-65°C to +85°C
Sealing ClassIP68 (24hr, 1m, 20°C)
Mechanical ShockMIL-STD-202, Method 213, Test Condition D
VibrationMIL-STD-202, Method 204, Condition A
RoHS & ISO ComplianceCompliant (ISO 9001:2015)
