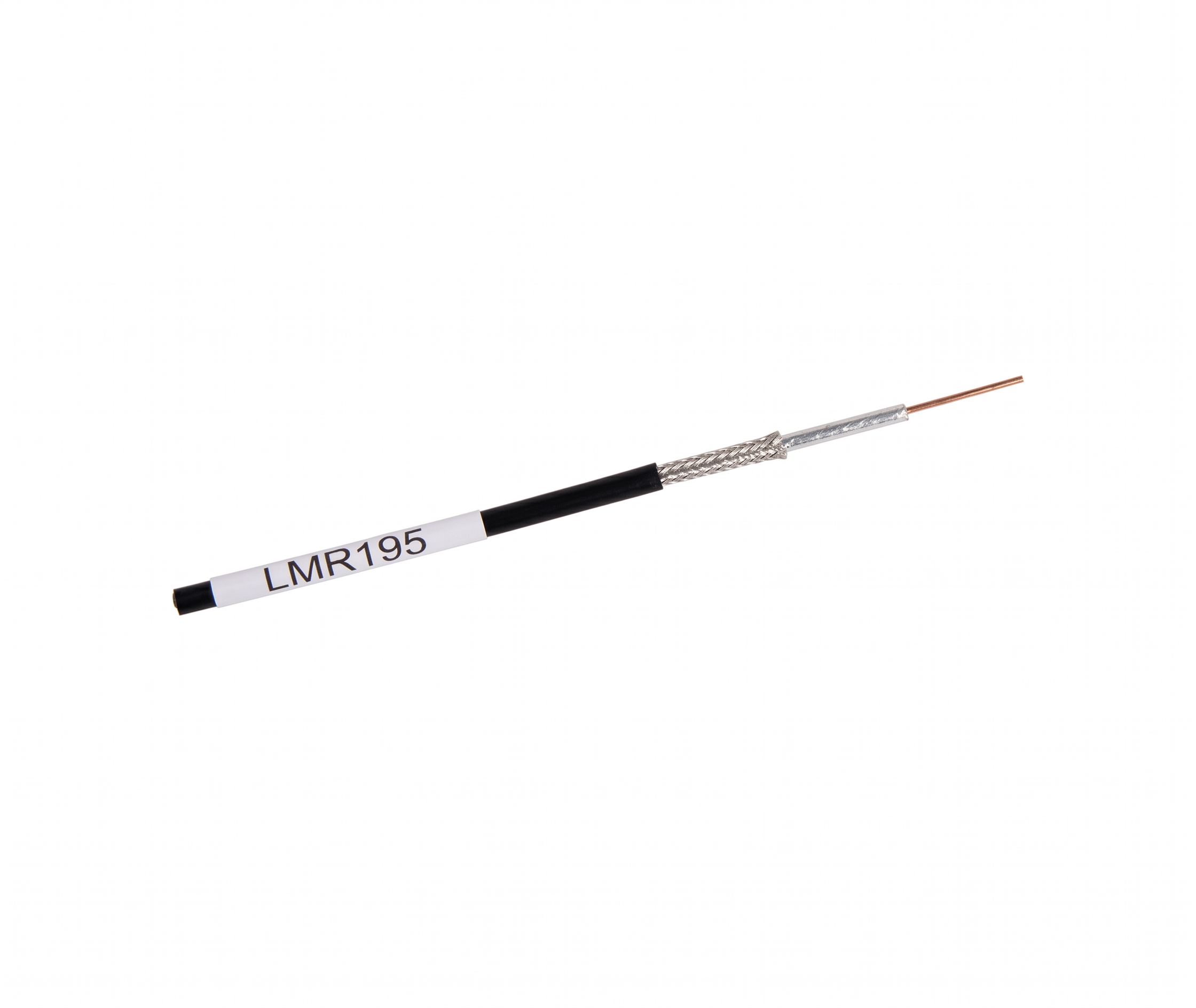

High-Performance LMR195 Braided Cable
Hefei Bri Electronic & Technology Co., Ltd. is a professional manufacturer specializing in high-performance RF solutions. Our LMR195 cable is a premium braided cable designed for superior flexibility and low signal loss in In-Building Distributed Antenna Systems (IBS/DAS) and public safety networks.
Engineered with a 50 Ω impedance, this cable features a high-purity bare copper inner conductor and a bonded dual aluminum foil with tinned copper braiding (89% coverage) to ensure excellent shielding effectiveness. Its durable black PE jacket makes it suitable for demanding environments, maintaining a wide operating temperature range from -40°C to +80°C.
As a leading manufacturer, we provide the complete solution for your RF infrastructure. The LMR195 cable is perfectly compatible with our precision-engineered N male for LMR195 and N female for LMR195 connectors, ensuring a secure, low-PIM connection for your antenna distributed systems. Whether you are deploying 5G or public safety communication networks, our LMR series cables provide the reliability and performance your project demands.
Technical Specifications
Cable Construction
| Component | Material | Dimensions |
| Inner Conductor | Bare Copper
| 0.94 ± 0.02mm
|
| Dielectric | Foam PE
| 2.79 ± 0.08mm
|
| Outer Conductor | Bonded Dual Al Foil + Tinned Copper (89% Coverage)
| – |
| Jacket | Black PE
| 4.95 ± 0.15mm
|
Electrical & Mechanical Characteristics
Impedance: 50 ± 2Ω
Velocity of Propagation: 80%
Capacitance: 83.3 pF/m
Return Loss (30-3000MHz): ≥ 20.8 dB
Min. Bend Radius: 12.7mm
Operating Temperature: -40 to +80 °C
Attenuation (Typical per 100m)
| Frequency (MHz) | Attenuation (dB/100m) |
| 150 MHz | 14.63
|
| 450 MHz | 25.57
|
| 900 MHz | 36.39
|
| 1500 MHz | 47.77
|
| 2500 MHz | 62.30
|
| 3000 MHz | 68.56
|
Frequently Asked Questions (FAQ)
1. Is the LMR195 cable suitable for outdoor DAS installations?
Yes. Our LMR195 cable features a robust Black PE jacket and a wide operating temperature range (-40°C to +80°C), making it highly resistant to environmental factors in various installation scenarios.
2. What connectors should I use with this braided cable?
For optimal performance in antenna distributed systems, we recommend using high-quality N male for LMR195 or N female for LMR195 connectors. These ensure a low-loss, 50 $\Omega$ matched connection.
3. How does the LMR195 compare to standard RG series cables?
The LMR195 cable is a high-performance braided cable that offers significantly lower attenuation and better shielding than standard RG58, thanks to its bonded foil and 89% tinned copper braid coverage.
