Premium 50W Low PIM RF Cable Termination (DC-6000MHz)
When deploying modern in building distributed antenna systems (IBS), managing unused ports and preventing signal reflection is vital for maintaining network capacity and call clarity. Hefei BRI Electronic & Technology Co., Ltd. manufactures professional-grade RF passive products designed to keep your infrastructure running flawlessly.

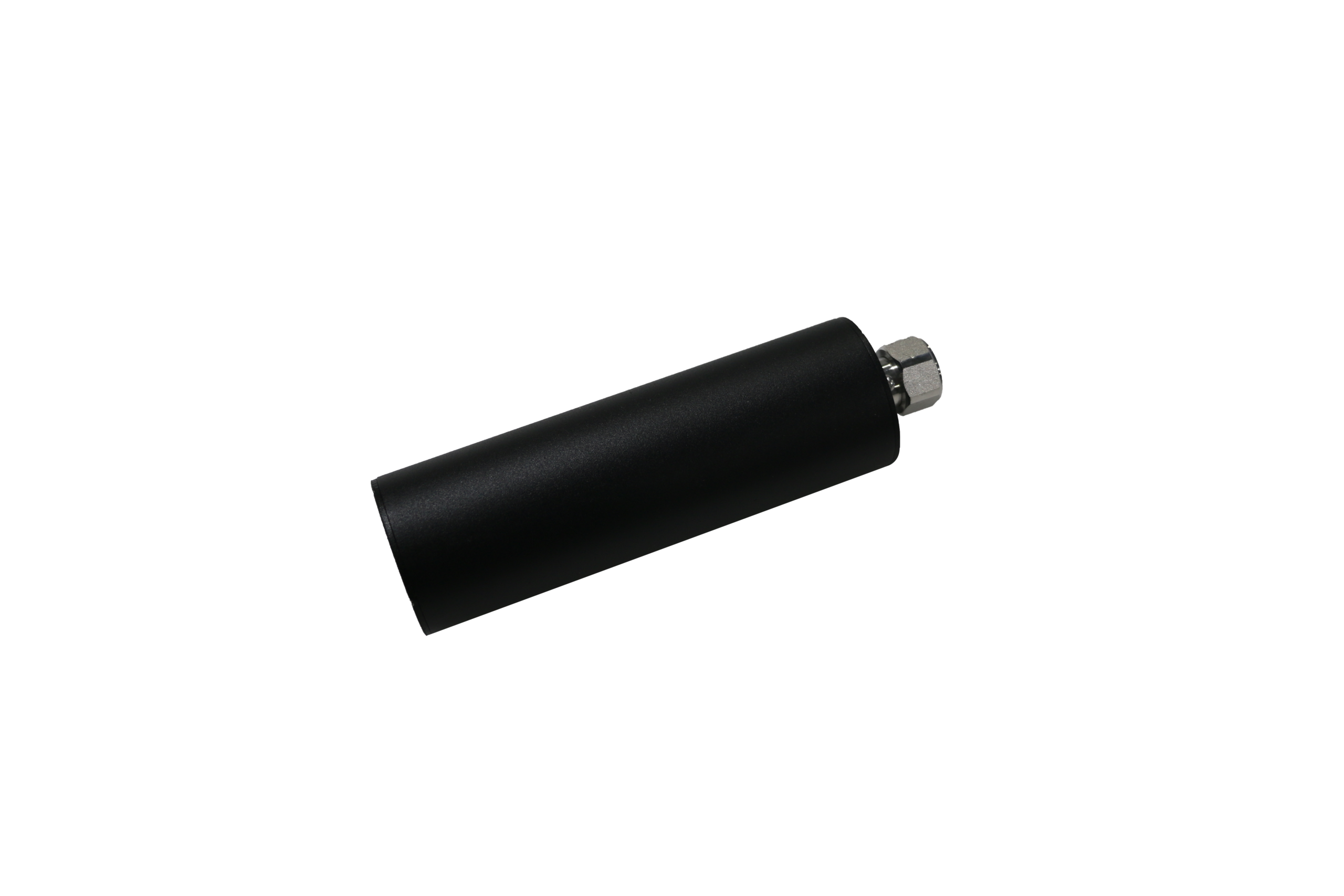

Our 50W low PIM rf cable termination (also known as a dummy load) is engineered to absorb excess RF energy across an ultra-wide frequency band from DC up to 6000MHz. This makes it the ideal, future-proof rf terminator for next-generation telecom environments.
The Ultimate 50 Ohm RF Load Termination for 5G Networks
As telecommunications rapidly shift toward denser deployments, components must be able to handle higher frequencies and stricter Passive Intermodulation (PIM) standards.
Broadband Performance: Operates seamlessly up to 6000MHz, easily accommodating the crucial 3800MHz 5G bands required for modern mobile networks.
Ultra-Low PIM: Our rf terminators are engineered to minimize passive intermodulation, ensuring that no unwanted noise reflects back into your 5g distributed antenna system.
Reliable Power Handling: Safely dissipates up to 50 Watts of average power, preventing damage to sensitive upstream equipment like splitters, couplers, and base transceiver stations.
Versatile Application: Whether you are building out a commercial office space or a sprawling transit hub, our rf load terminators provide the rugged rf coaxial termination necessary to cap open ports securely.
Technical Specifications
Electrical Specifications
| Specification | Performance Value |
| Frequency Range | DC – 6000MHz |
| Impedance | 50 ohm rf load termination |
| Average Power | 50W |
| VSWR | ≤ 1.25 |
| PIM3 (2*43dBm) | ≤ -160 dBc (Low PIM) |
| Connector Type | DIN Male / 4.3-10 Male / N Male (Options Available) |
Environmental & Mechanical Specifications
| Specification | Value |
| Application | Indoor / Outdoor (IP65/IP67 options) |
| Operating Temperature | -40°C to +85°C |
| Heatsink Material | Aluminum with Black Anodization |
Product Advantages
Innovative Design Integrating System Compatibility
The product design emphasizes modularity and adaptability, compatible with various coaxial cable types used in distributed antenna systems. The rf cable termination is crafted for secure mechanical and electrical connection, while the use of highly stable rf load terminators ensures consistent impedance matching under diverse environmental conditions. The integration of proven rf dummy load technology aids engineers in performing calibration and isolation without system disruption. This design approach promotes streamlined installation workflows and reduces downtime during network upgrade cycles.
Superior Performance and Usability in Complex Deployments
These components deliver reliable absorption of residual power, preventing damage to system amplifiers and enhancing network longevity. The precise 50-ohm calibration of rf 50 ohm termination devices reduces system noise and potential dead zones within the antenna coverage area. The user-centric design permits quick installation and removal, facilitating efficient on-site testing and maintenance by technical staff. Consequently, the system achieves optimal electromagnetic performance while simplifying operational demands across diverse deployment scenarios.
Use Scenarios
Enhancing Security and Signal Integrity in Transportation Hubs
In environments such as airports and subway stations, maintaining uninterrupted wireless communication is imperative. The distributed antenna system integrates rf cable termination and rf load terminators to ensure consistent signal propagation and prevent antenna desensitization caused by impedance mismatches. These components enable technicians to isolate antennas during maintenance without affecting overall system integrity. Utilizing precise terminations and loads supports regulatory compliance with communication standards and helps maintain system performance despite challenging electromagnetic environments typical of transit hubs.
Facilitating Testing and Maintenance in Healthcare Facilities
Hospitals rely on robust wireless networks for critical communication systems. Deploying a distributed antenna system service that includes advanced rf dummy load and rf cable termination components allows facility engineers to simulate antenna loads during system diagnostics. This facilitates fault detection and signal optimization without disrupting vital services or patient monitoring systems. Through these technical measures, healthcare providers uphold signal reliability and regulatory requirements, ensuring that mission-critical communications remain uninterrupted within complex building layouts.
Secure Your IBS Infrastructure Today
Partner with Hefei BRI Electronic & Technology Co., Ltd. for highly reliable rf load termination solutions. We offer rigorous quality testing and highly competitive wholesale pricing for your network deployments.
