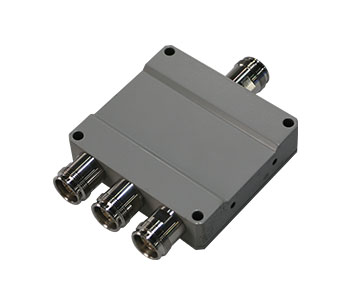

Stripline wideband power divider 2/3/4 way power divider 694-3800MHz
300W -155dBc@2*43dBm
Key Features:
- Wide frequency range 694to 3800 MHZ for 2G/3G/4G applications ·
- Low passive intermodulation155dBc·
- Low VSWR & insertion loss ·
- Indoor & outdoor use; IP65
- Connector Type 4.3/10 Available
| Part No. | BR-WH2PS-738-155-41F | BR-WH3PS-738-155-41F | BR-WH4PS-738-155-41F |
| Electrical | |||
|
Frequency range (MHz) |
694-3800 |
||
| VSWR: 694 – 2700 MHz
2700 – 3800 MHz |
≤ 1.3 (Port 1) ≤ 1.4 (Port 1) |
||
| Insertion Loss(dB):
694 – 2700 MHz 2700 – 3800 MHz |
3.1 dB ± 0.2 dB 3.1 dB ± 0.3 dB |
4.8 dB ± 0.4 dB
4.8 dB ± 0.5 dB |
6.2 dB ± 0.6 dB 6.2 dB ± 0.7 dB |
| Intermodulation (dBc) |
≤-155dBc (with 2×43dBm) |
||
|
Impedance (Ω) |
50 Ω |
||
| Input power (W) |
300 |
||
| Environmental | |||
|
Temperature range |
-25°C ~ +55°C |
||
|
Phase difference |
≤ 20° |
||
| Application |
Indoor or outdoor (IP65) |
||
| Mechanical | |||
|
Connector |
4.3-10-Female |
||
|
Color |
Grey |
||
| Weight(kg) |
0.40 |
0.52 | 0.67 |
|
Dimension(mm) |
78.7mm×73.5mm×23.5 mm | 82.7mm×89.3mm×23.5mm |
85.3mm×118mm×24.1mm |
