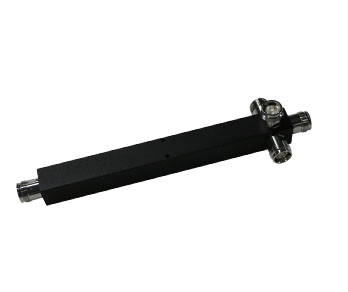

high power rf splitter 2/3/4 way rf power splitter 617-4200MHz
300W -160dBc@2*43dBm
Key Features:
- Designed for superior signal distribution with low insertion loss, high isolation, low VSWR, and excellent low PIM performance.
- Covers a wide frequency range ideal for multi-band applications.
- Compact and space-saving design enables easy integration in complex systems.
- Rugged construction ensures long-term reliability in harsh environments (IP65 rated).
- Available in 2, 3, and 4-way configurations with high power handling up to 300 W average.
- Customizable options to meet diverse technical requirements.
| Insertion Loss(dB) |
2way≦3.0+±0.4 |
3way≦4.8+±0.5 |
4way≦6.0+±0.6 |
| Freq (MHz) |
617-4200 |
||
| Return loss |
≤-19 dB |
||
|
Intermodulation (dBc) |
≤-160dBc (with 2×43dBm) |
||
| Impedance |
50 Ω |
||
| Input power |
300 W(avg.) |
||
|
Operating temperature |
-20°C to +65°C |
||
| Storage temperature |
-35 °C to +75 °C |
||
| Relative humidity |
5% – 95% |
||
| Application |
IP65 |
||
